Equipment
Onboard Bus Logger CANLogger-6FD, is mainly used in vehicle crash tests to collect data on the vehicle's CAN bus and provide T0 time mark. The equipment is designed according to the 6-channel standard CAN. The equipment is connected by bus. The baud r...
The RES-1000A is used for EV/HV Isolation test including crash test. It includes voltage (Vb, V1 and V2) and isolation resistance measurement before and after T0. And energy TE measurement can be also enabled. The whole measurement process is finished...

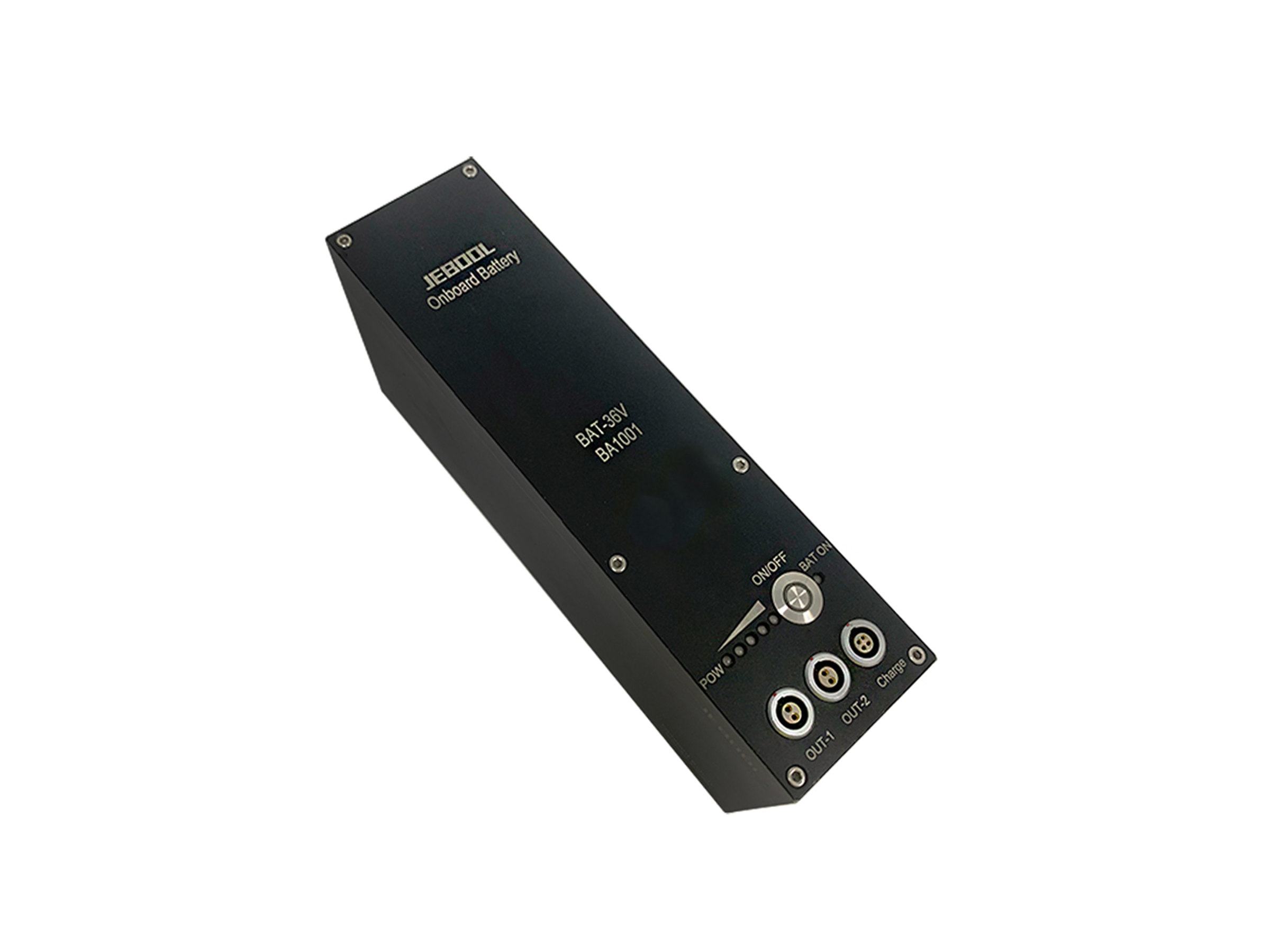

The on-board battery BAT-36V adopts a power-type lithium battery cell design, 37.8V when fully charged, and a discharge cut-off voltage of 24.5V. Built-in UPS automatic bypass circuit, when the external power supply is greater than 31V (default value,...
Onboard LED light LED-36W, using high-power LED matrix lamp, get very high conversion efficiency from current to luminous flux. The LED matrix is directly installed on the copper pillar radiator, and the high-speed fan is added to achieve a good heat ...
Onboard Hub JHUB-8C is mainly used in vehicle crash test, the bus integration of built-in data acquisition dummy (In-Dummy), high-speed cameras, etc., which includes power supply, communication and trigger signal. JHUB-8C also provides trigger output ...
